ThinkTool Ultra X10

ThinkTool Ultra X10

10-Inch Full System and Full Function Diagnostic Tool

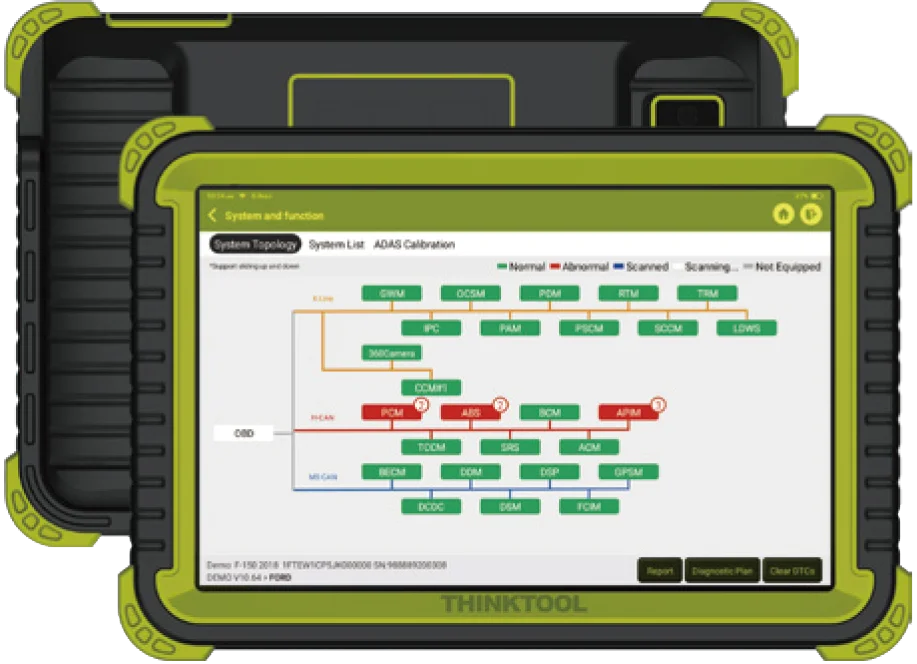

THINKTOOL Ultra X10 is a brand new diagnostic tool with full systems and full functions. It equipped with THINKDIAG MINI 2 VCI, which supports 98% vehicles on the market, it compatible with ADAS and 8 extended modules. It is a new generation of modular high-end intelligent diagnostic device developed by Thinkcar, which supports Android 10 system. It can provide users with a faster and more optimized usage experience.

Advantages

Superior Hardware

Equipped with a 10-inch IPS screen, a high-performance processor, 4GB+64GB memory, and a 8MP rear camera with flash. Supports WiFi communication for faster and more stable data transmission.

Equipped with THINKDIAG MINI2 VCI

Supports CAN, CAN FD, ISO9142, ISO14230, SAE-J1850 and other commonly used diagnostic protocols, covering more than 100 car brands.

OE-Level Full System Diagnostic

Ultra x10 supports advanced diagnostics function, such as reading/clearing fault codes, reading data streams, actuation tests, and other special functions.

Modular Expansion

Supports modular expansion with a range of accessories, including printer, work light, video scope, battery tester, scope box, thermal imager, module dock, wireless TPMS tool, allowing users to customize the device for various diagnostic scenarios.

Online Update & Feedback Support

Supports online updates for diagnostic software, client applications, and firmware. Users can provide real-time feedback on any abnormalities, with professional support for timely resolution.

34 Resets

• Oil Reset

• Elec. Throttle Adaption

• IMMO Service

• Injector Coding

• Brake-pad Reset

• Steering Angle Reset

• ABS Bleeding

• AFS Reset

• Battery Matching

• A/T Learning

• DPF Regeneration

• EGR Adaption

• TPMS Reset

• Sunroof Initialization

• Suspension Matching

• Gear Learning

• Airbag Reset

• ODO Meter Reset

• AdBlue Reset

• A/F Reset

• Coolant Bleeding

• Language Change

• NOx Sensor Reset

• Seat Calibration

• Stop/Start Reset

• Transport Mode

• Tyre Reset

• Windows Calibration

• AC System Relearn/Initialization

• Engine Power Balance Monitoring

• Gas Particulate Filter Regeneration

• High Voltage Battery Diagnostics

• Intelligent Cruise Control System

• Motor Angle Calibration

• Hardware Specifications:-

• Operating System

  Android 10

  Screen Size

  10-inch

  Storage

  4+64GB Ram/ROM

  Battery

  12600mAh / 3.8V

  Camera

  8Mp (Rear)

  Software

  2-Year Free Update for Passenger Software

  ADAS

  Optional

  TPMS

  Optional
